SPD-24-1015 series

Product Name : SPD-24-1015 series
SPD-24-1015 series




    Product Description

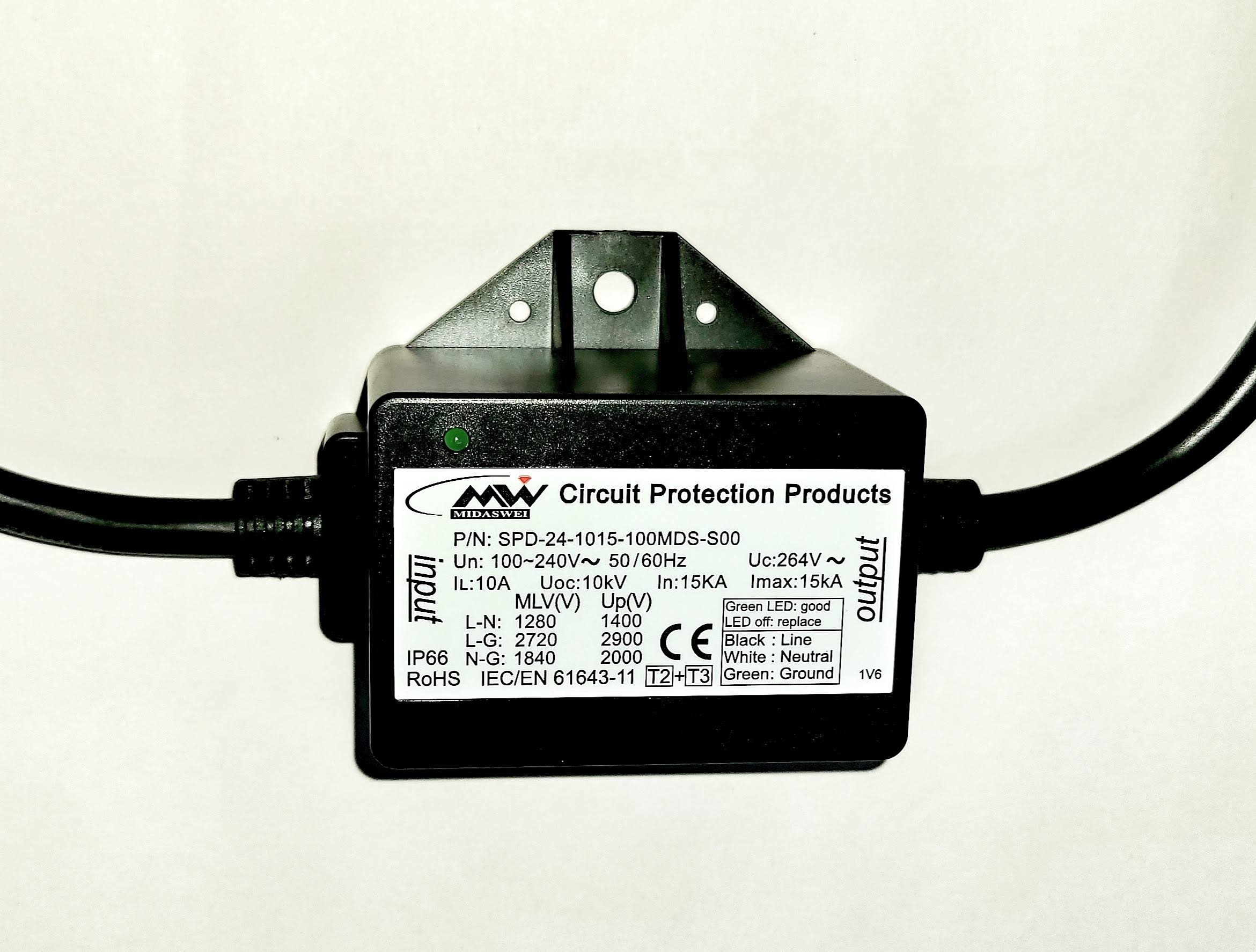

    This Surge Protection Module is a single phase surge protector. It use in LED lighting, communication …, the Surge Protection Module is in series between main power and protected equipment and clamping transient overvoltage. It includes Midaswei SPM comportment for lower protection voltage level (Up) and a built-in LED indicator to notify replacement.

    This SPD has a fault mode, a NPN type digital I/O for alarm output on SA1 series and LED indicator on all series.

    Product Character


    n   LED lighting/Linear LED lighting/Street light

    n   5G cell site

    n   Communication equipment

    n   Power converter equipment

    n   Traffic lighting

    n   AC motor

    n   EV charger/station

    n   Industrial equipment

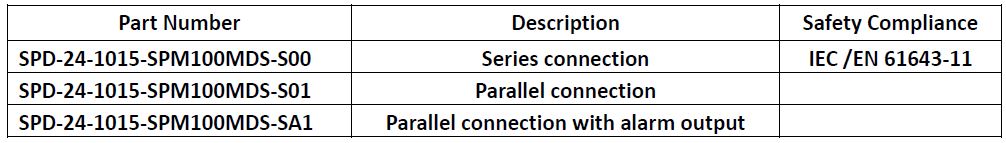

    Agency Approvals:UV IEC/EN 61643-11 (T2+T3) *1   *1: See Application Circuit section for details of safety standard.

    UL 1449 type 4 C.A





    Application Circuit:
